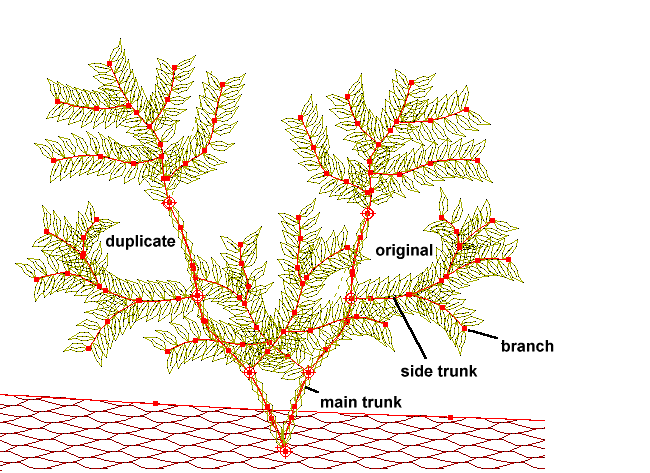

The bush consists of several running stitch automaticsAOE6O8. The main trunk of the bush is a multi running stitch with activated swing & shiftSWING option. The main trunk is passed 4 times with different settings of the swing value (swing is right-angled to running direction) and the shift value (shift value related to the ‘normal’ run of a running stitch pass)

Now several side trunks were added to the main trunk and also branches were added to the side trunks (so a tree is built up). This complex structure of trunk and branches were filled automatically. The program searches its way through all the digitized parts of a trunk with branches. In all side trees (= side trunk + corresponding branches) the option macro fillAUCH0D was activated (in contrast to the main tree, which only consists of a trunk with no branches in this example).


A self defined macro was chosen. It’s a simple pattern, which shows 2 leaves (see picture). The number of passes through the side trees was chosen with the number 2 in such a way, that the last stitch in a tree is the stitch to the trees start position. The bush at the right was built up like this first (titled as original). The module mode functions were used to copy the complete bush (titled duplicate) stretch, mirror, slant and rotate it. Finally it was moved to its designated position..
