Clicking into the module on curve or clicking the stretch-button switches to the editing-mode of the text-module. The outer active points of the box are displayed triangular and the three buttons for modification of size , width and distance are active in the parameter bar.

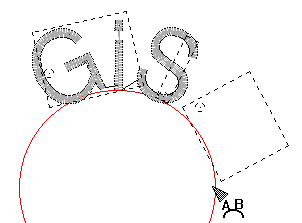

If the size-button is pressed and you pull at the left or right active point the start- or endpoint of the module is shifted and the size is adapted simultaneously



If you hold the Ctrl-key pressed while pulling, the shifting is done from the center-point of the module to both sides.

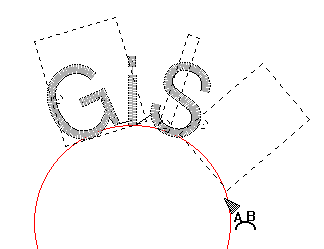

If the width button is pressed the width of the text is adapted while pulling, but not the height. Here again the use of the Ctrl.key is resulting the shifting from the center-point.

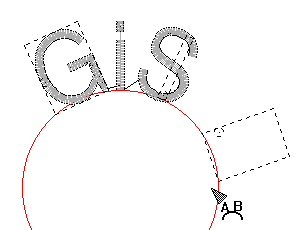

If the distance button is pressed, the gap between the letters is altering while pulling, but neither width nor height.

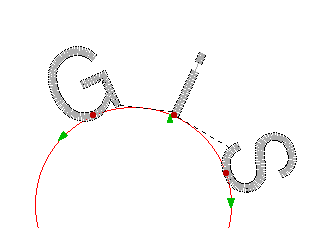

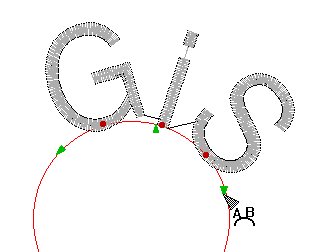

If there will be undesired gaps within the text, you can click to each letter at its red active point and move it along the curve. If you press the CTRL-Key simultaneously, the letter itself and all following ones are moved. This is very useful if there are gaps in front of a character.


With the aid of these functions the text can be modified as long as it fits to the curve optimally.
