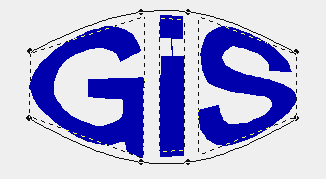

A single lined monogramming-module can be lend to a certain shape with the function envelope. The module has to be selected and the envelope button in the parameter bar or in the menu block has to be used.

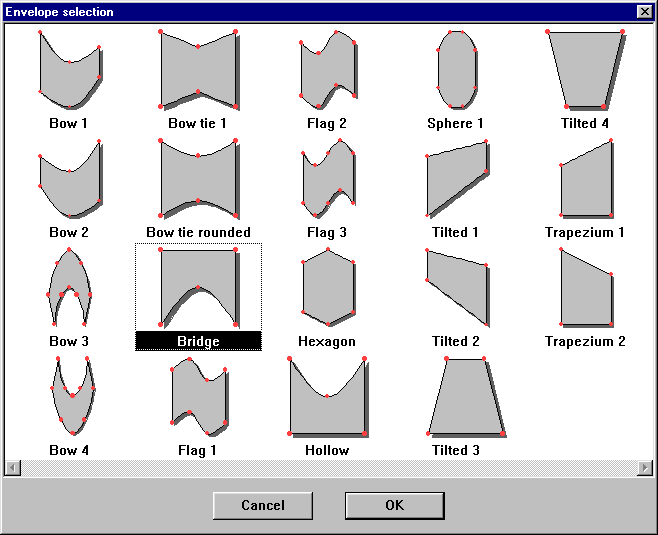

The window for the selection of the envelopes is displayed.



The desired shape can be selected by clicking on it and after having confirmed with OK the module is displayed in the new shape. The original height of the letters is kept, at least at one side of the contour.



The text module can be brought out of shape by pulling at the active points, so nearly every contour can be reached.



If you want to change the envelope for your text module, this is possible with  the Envelope-selection-button .


A text module in an envelope can just be modified in its position, other editions are impossible. Therefore the module has to be removed from the envelope, this is done by pressing the envelope button again. The text is displayed in original size at its original position after that.
