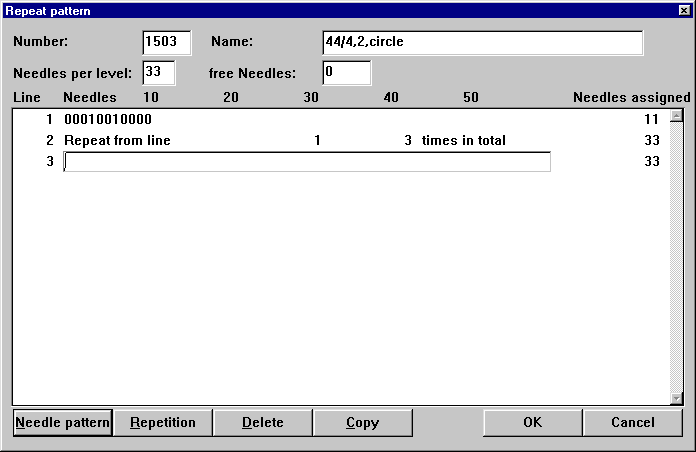

This window is made for creating new free repeat pattern or edit existing

ones.

A repeat pattern consists of its name, a number, the number of needles per level and one or more data sets. The needles which are still free are also displayed.


A data set can be either a needle pattern, which can have up to 60 needles. That is a sequence of the numbers 0 and 1, a 1 indicates an active needle, a 0 unused one. The total number of assigned needles is displayed at the end of each line

A data set can be also a repeat command for one or more existing needle patterns. Then data set, from which on you want to repeat and the number of repetitions has to be input.

For the number of needles and repetitions there can also be input a * for the value “infinite”. That means that the pattern is repeated as long as all needles at the respective machine are used.


With the needle pattern key a new needle pattern is inserted at the position of the black line.

An existing needle pattern can be edited after double clicking on it.


Pressing the repetition-key causes the insertion of a repetition data set at the marked position. The values for the number of repetitions and the starting data set can be input after double clicking at the respective position.

The Delete key deletes the selected data-set, with Copy a data set can be copied at the selected position
